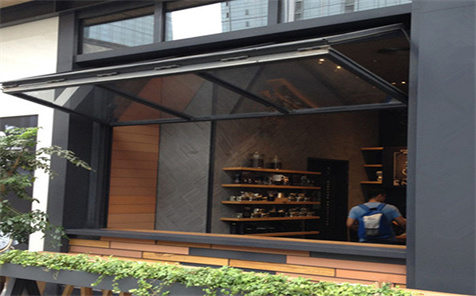

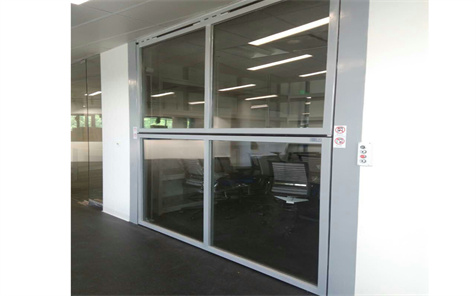

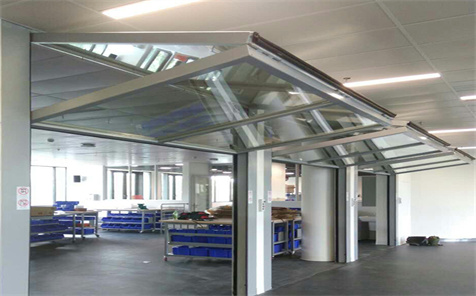

1. The folded Glass Wall is mainly composed of glass wall panel, guiding system, lifting system, hardware, safety device, etc. The wall folds upwards to open.

(2) Profile steel frame: 100*150*4 galvanized square tube is welded to form the door frame, and the surface is provided with fixing holes, which are matched with the fixing holes of the hinge.

(3) Sealing strips: All sealing strips are sealed with EPDM rubber. It has excellent heat resistance, aging resistance, resilience, insulation properties and low temperature resistance, and has a service life of 15 years.

4. Lifting system: motor, transmission shaft, lifting wheel, axle frame, etc.

(1) Motor: high-quality ABB motor, working power: three-phase 380 V (50HZ) AC power; motor power: 2.2KW. The control adopts ABB electrical components, with soft start and soft stop function.

    The motor can realize manual and electric functions. During electric operation, a button box is set on one side of the hole, and the door can be opened and closed by operating the up, stop and down buttons on the button box. And when the door body runs to the set position, it will stop automatically.

When the power goes out, twist the manual lever above the motor, so that the motor can rotate slowly. The door can be opened and closed manually.

5. Hardware: bottom wheel frame, pulley, hinge, surrounding sealing strip, electric zipper, etc.
6. Safety device: composed of airbag and anti-fall device.
