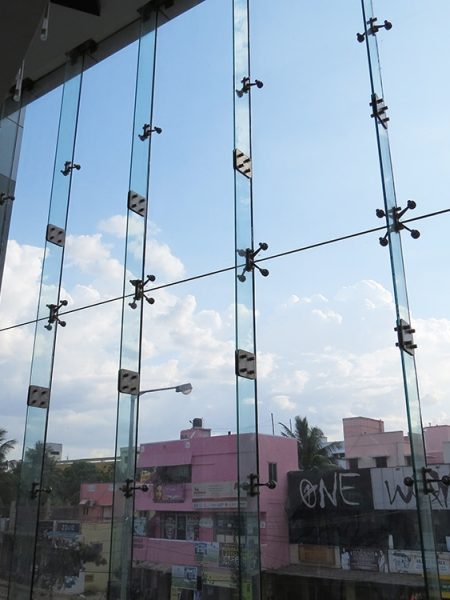

Point Supported Spider Glass Curtain Wall is a system for point-supported vertical glazing in which thermally toughened (tempered) glass sheets are used, in single glazing or in insulated glass. Laminated safety glass (tempered laminated glass) is preferable to be used in single glazing or as the outer sheet of the insulating glass units.

The steel structure can use circular steel tube or bar, or fish belly type steel hinge supporting the structure or other structural hinge forms. The spider claws are installed between the steel structure and the glass panel with its four corners
fixed. The fasteners of spider claws pass through the glass panel holes and clamping the glass panel after being fastened. This connection structure is flexible in material selection and simple in installation.

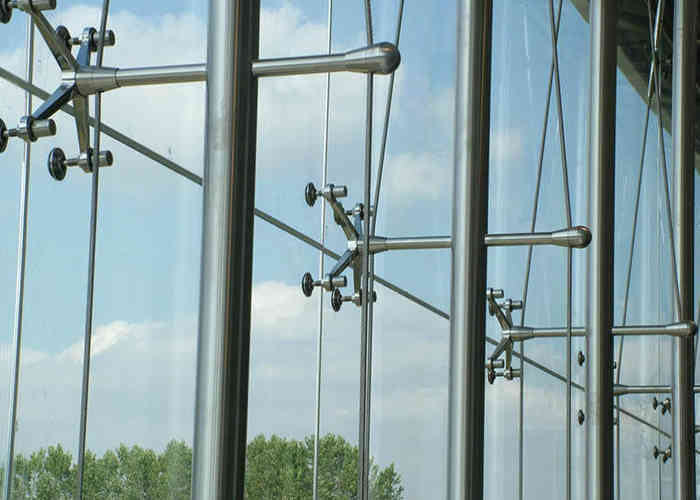

Self-balancing Tension Cable Supported Point-fixing Curtain Wall
It consists of pulling cable or draw rod and steel structure, with the pre-stressed force in pulling cable or draw rod keeping itself balanced and stable. It can take outside load action by decreasing the load transferred to the major structure. When designing, the pre-stressed force of the pulling cable or draw rod must be considered in advance. The pre-stressing of the tension must be pre-specified. The actual installation must be carried out in strict accordance with the prescribed standards.

Single Cable Point-fixing Curtain Wall
It is supported by concave soft cable networks, consists of large scale hanging cable and single layer wire crossing network
point system. The large scale hanging cable network system forms different concave fold curtain wall by advanced form finding
technology. This system has the super anti earthquake capability between the large scale cable and single layer wire network.

Glass Rib Supported Point-fixing Curtain Wall
There is no steel structure in this system, the glass rib is used for supporting, and the spider claws are connected to the strong thick glass rib, the fasteners of spider claws pass through glass panel holes and clamping the glass panel after being fastened. The top of glass rib is fixed as hanging connection, and the base is as flexible connection.
FASEC Spider Curtain Walls provide unobstructed view as a whole, neat, bright and integrated with such advantages as safety, practicality and artistic taste thus becoming a vogue for modern construction and decorations.
