Exterior Wall Unitized Glass Curtain Wall Building Double-Layer Glass Curtain Wall

The Exterior Wall Unitized Glass Curtain Wall with Double-Layer Glass is a cutting-edge solution for modern architecture, providing excellent energy efficiency, aesthetic beauty, and long-lasting durability. It’s a popular choice for high-rise buildings, commercial spaces, and residential projects, offering a perfect balance of functionality and design. This system not only improves building performance but also enhances the visual impact of any structure, making it an ideal choice for contemporary architecture.

The Exterior Wall Unitized Glass Curtain Wall with a Double-Layer Glass System is an advanced architectural solution designed for high-performance building facades. It integrates modern aesthetic appeal with superior functionality, providing energy efficiency, thermal insulation, noise reduction, and excellent weather resistance. This system is highly regarded in both commercial and residential projects for its visual appeal and practical benefits, contributing to the sustainable design of modern buildings.

  1. Unitized System Pre-assembled in units for easy installation, minimizing on-site labor and improving construction efficiency.
  2. Double-Layer Glass The two layers of glass provide enhanced insulation, helping regulate internal temperatures and reduce energy costs. The air gap between the layers also acts as an effective barrier against noise and external elements.
  3. Energy Efficiency Superior thermal insulation performance ensures reduced reliance on HVAC systems, promoting a more energy-efficient building environment.
  4. Aesthetic Appeal The double-glazed glass curtain wall offers sleek, modern aesthetics with unobstructed views, allowing maximum daylight penetration while minimizing glare.
  5. Weather Resistance The system is designed to withstand extreme weather conditions, providing long-term durability and maintaining structural integrity.
  6. Sustainability Made with eco-friendly materials, the system helps achieve energy-saving and green building certifications.

Applications



  1. High-Rise Buildings Ideal for skyscrapers and office towers where aesthetic impact and energy performance are paramount.
  2. Retail and Commercial Spaces Perfect for malls, showrooms, and commercial establishments requiring large glass facades.
  3. Residential Complexes Suitable for upscale residential projects where natural lighting and modern design are prioritized.
Feature Description
Glass Type Tempered or Laminated Glass (Outer Layer), Low-E Glass or Insulated Glass (Inner Layer)
Glass Thickness Outer Layer: 6mm to 10mm, Inner Layer: 6mm to 10mm
Air Gap (between glass layers) Typically 12mm to 25mm, customizable depending on thermal and acoustic requirements
Frame Material Aluminium Alloy, Stainless Steel, or Steel (Corrosion-resistant finish)
Frame Structure Unitized, pre-assembled modules for efficient on-site installation
Thermal Insulation U-value: 1.2 W/m²·K to 1.8 W/m²·K depending on glass configuration and air gap thickness
Sound Insulation Sound Reduction Index (Rw): 34dB to 45dB (varies based on glass layers and air gap size)
Solar Heat Gain Coefficient SHGC: 0.2 to 0.5 (depends on type of glass and coating)

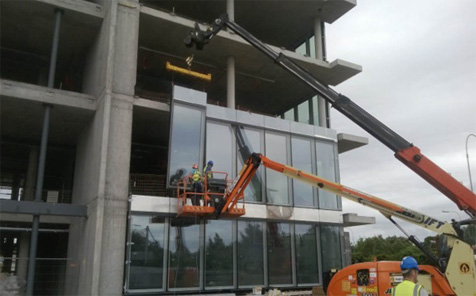

Installation Type Unitized, modular system with crane lifting for efficient installation
Color Options Standard finishes: Anodized, Powder-coated, or customized RAL colors
Customization Options Available for curved designs, various glass coatings (low-E, reflective), and integrated shading devices
