Curtain Wall 316 Stainless Steel Glass Spider Fittings Black For spider wall fitting glass system

Production introduction

Curtain wall accessories material in addition to corrosion resistance, the material also has oxidation resistance, high elongation, wear resistance, and high temperature resistance, and so on. Among the materials, 304 and 316 are mainly used for curtain wall fittings.Both of these materials provide better corrosion resistance and oxidation resistance.Curtain wall fittings using these two materials can also show better quality.

Each kind of different curtain wall fittings has different application in the use of curtain wall.For example, it is an important tool to connect the glass curtain wall.Only with the help of the good connector claw, can the glass curtain wall be connected better.And from a variety of circumstances, the use of splash-jaw also has a lot of advantages.With the help of the connector, the beauty of the glass curtain wall can be even better.Its specific performance is better daylighting, can let the indoor and outdoor environment into one.And the different structure of the glass spider can meet the different decorative effect needs and architectural structure needs.

Products characters

1.All the products produced by Lemon building material factory need get through three strict inspections before packing: Raw material cutting test, Production process inspection, The finished debugging.
2.Providing customized service to apply each customer requirements, we will try our best to achieve 100% customer satisfaction.

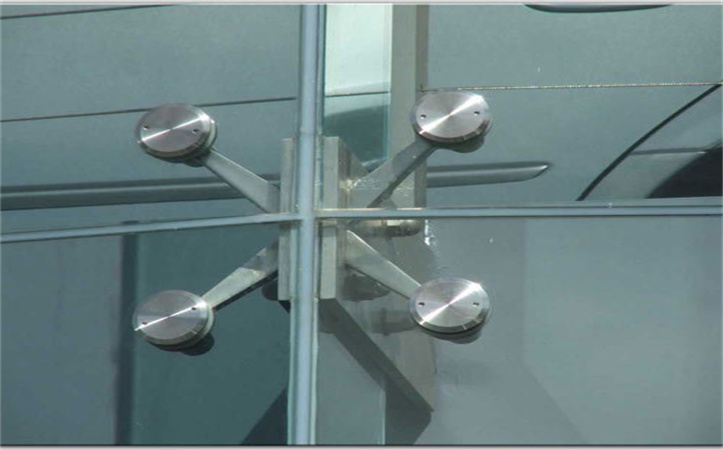

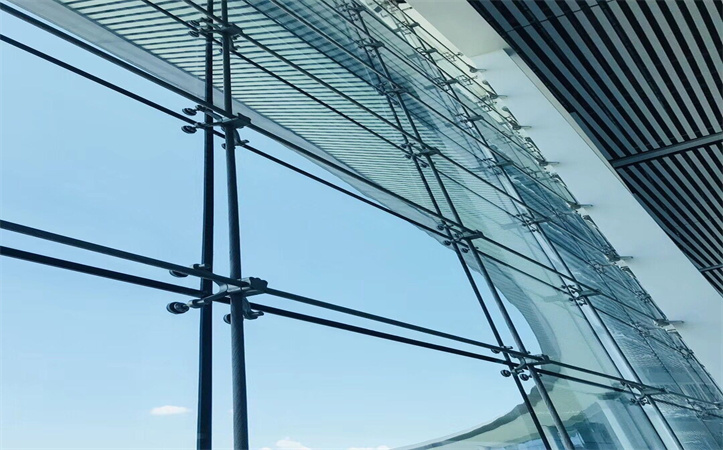

Features of the Point Fixed Glass System Curtain Walls (spider system):

  • Engineers and modern architects have designed this system with a main objective of getting the most possible transparency and thus the clearest vision which is normally hindered by using the various constructing elements.
  • The spider system offers practical solutions to glass assembly that no other system can provide.

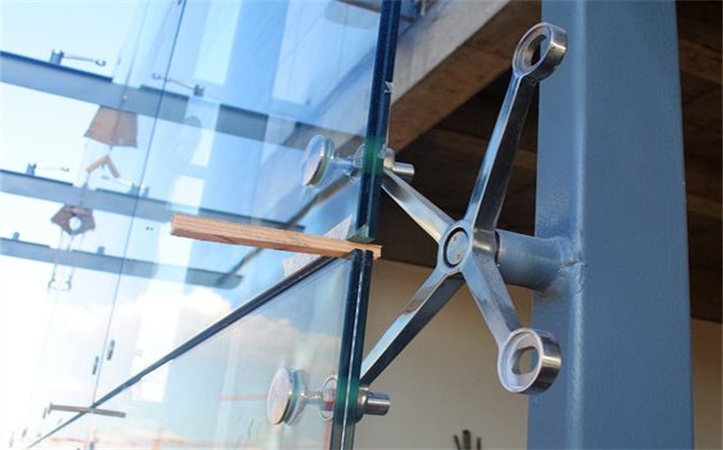

  • To fix the glass up at the edges of the facade, one or two arms-accessories can be used. In special applications, the number of arms might be more than two and the sheet of glass can be fixed by one arm at each corner.
  • The used accessories can be mounted against metal frames or against glass fins and tension rods are used to pull these accessories together.
  • Single, Insulating and laminated glass can be used with the spider system. The thickness of the glass depends on the specifications of the project; therefore a special study is performed for each project.
  • When the spider system is chosen, halls will be applied to glass before being assembled. Therefore, tempered glass should be used.

FAQ

1.Can you send me your whole price list?

Sorry, Glass Railing,as the price relates to many factors, such as quality & quantity, after we confirm your detail request, we will offer you exact quotation.

2.What is your payment term?

T/T, LC, Western Union, PayPal.

3.What is your delivery time for this order?

Normally our delivery time is 30-35days, but if we have the goods you want in our stock, then the delivery time will be in about two weeks or less.

4.Can you produce fittings according to drawings?

Yes, of course. We can do the OEM and ODM. And your own logo is available too.

5.Are you casting by yourself?

Yes, we are. We have our own casting factory, so if you want us to do some special design goods, our casting engineer will make the drawing for you according to your request.

6.Can you send me samples then I can feel your quality?

Yes, of course. FREE samples are available.

7.What is your main market?

Our goods are sold mostly to some European countries, such as Germany, Italy, Poland, UK… and we also sale to Australian and Africa a lot.

8.What is your payment condition?

Our payment condition is 30%&70%. After we signed the contract both side the buyer need to arrange the 30% deposit for us. After we get the advance we will start the production right now. When we finish, buyer can send his/her QC agent to check the goods. Buyer need to pay the balance before we dispatch the goods.

9.Can you help me to get my order’s quality test report before shipping?

Yes, we can send your order Items to the test office to do get the report like SGS test official office.

10.How many fittings do you do in one month?

Punching fittings we can do more than 100000 pieces a month, casting fittings we can do more than 50000 pieces a month.
