Aluminum casement window

    Home > Products > Aluminum casement window

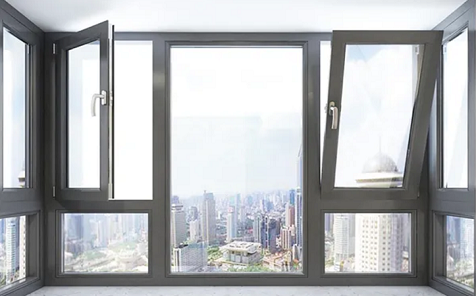

Aluminum alloy glass internal opening and internal inverted window

Tilt and turn windows are known for their simplicity and practicality. They can either swing open like a door or tilt inwards for ventilation with a simple turn of our ergonomic handles. Tilt and turn functionality allows easy ventilation and continued fresh air without having to leave the entire window wide open. Whether as a replacement for existing casement windows or new construction, tilt and turn windows are the best choice for every modern home.

 Profile thickness

1.7mm-3.0mm

Material

Aluminum Alloy

Profile Color

Customize

Glass option

Triple insulated glass: 5mm/6mm+16A/18A+5mm/6mm+ 16A/18A+5mm/6mm, warm edge spacer low-e & argon gas optional

Glass Type

Insulating Tempered Glass

Handicraft Arts

Customize

Hinge

Aluminum track

Sealing Strip

Germany Orginally imported EPDM Rubber sealing strip, black or grey color

Turn and tilt

stainless steel

 Profile

6063-T5 or  High Precision 6060-T66 Thermal

 break aluminum alloy

. Surface finish

Powder coating, Anodized, Woodgrain transfer

, Elestrophoresis,Fluorocarbon paint.



Description:

  1. Ventilation. The interior is turned on, so that the room is naturally circulated with the natural air, the indoor air is fresh, and the possibility of rainwater entering the room is excluded. Fresh air undoubtedly creates a comfortable living environment for people.
  2. Security. The linkage hardware and handles arranged around the window sash can operate various functions indoors. When the window sash is closed, all sides of the window sash are fixed on the window frame, so the safety and anti-theft performance are excellent.
  3. Easy to clean the windows. Pull the linkage handle to turn the outside of the sash into the room. Makes cleaning the outer surface of the window both convenient and safe.
  4. Practicality. Avoid taking up indoor space when the inward-opening window is opened.
  5. Good sealing and heat preservation performance. Through the multi-point locking around the window sash, the sealing and thermal insulation effect of the doors and windows is ensured.
